Medstone C-arm surgical imaging tables
High Quality Hospital Grade Surgical Imaging Tables with Free Floating or Motorized Capabilities
The STILLE Medstone c-arm tables contribute to enhancing efficiency while representing an affordable solution with quality and reliability provided by Swedish technology.

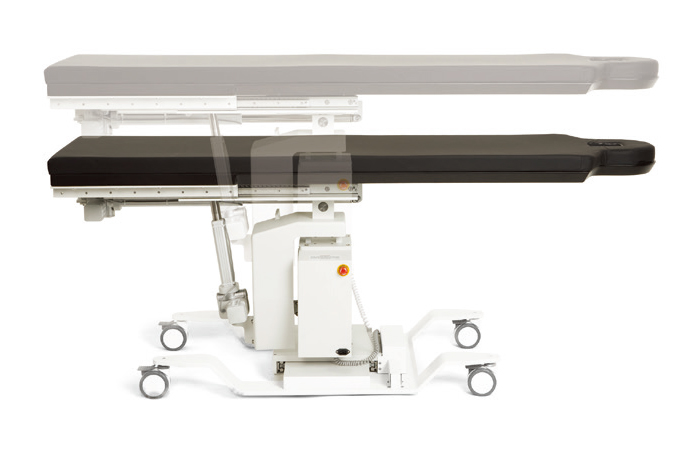

※Photo shows Medstone3 CV
Shortening Procedure Times and Enhancing OR Efficiency
STILLE has the longest published longitudinal float for mobile surgical imaging tables. The Medstone3 CV table with free floating capabilities allows for head to toe imaging with accuracy, speed and freedom of movements to improve efficiency in the OR.
STILLE Medstone3 CV Surgical Imaging Table
- Free floating top (industry leading longitudinal float range)
- Motorized elevation
- Patient weight capacity 500lb (227kg)
- Carbon fiber table top with 1mm Aluminium Equivalence
- Four hospital grade locking casters
- Float control unit with magnetic locking release
Height adjustment

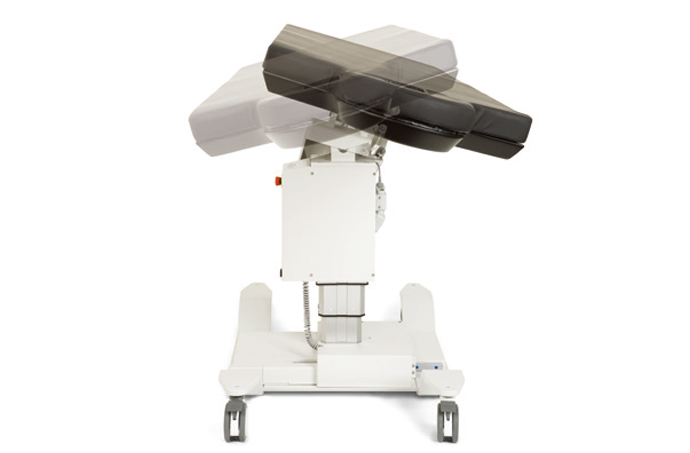

Lateral tilt

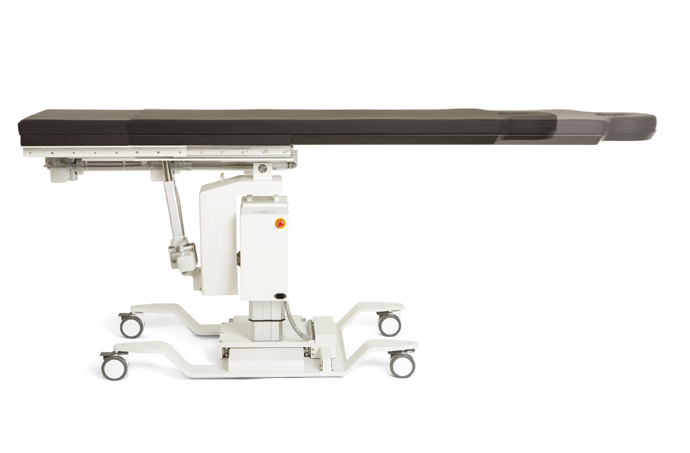

Longitudinal travel
| STILLE Medstone Table Model | Medstone1 PM | Medstone2 PM | Medstone3 ERCP | Medstone3 CV |
|---|---|---|---|---|
| Part # | 500-1015 | 500-1011 | 500-1007 | 500-1025 |
| Table Top Size | 56cm x 208cm | 56cm x 208cm | 66cm x 208cm | 61cm x 208cm |
| Elevation Range | 57cm-92cm | 65cm-100cm | 64cm-99cm | 67cm -107cm |
| Lateral Tilt | - | ±15° | - | - |
| Longitudinal travel | - | - | 40cm | 91.5cm（floating） |
| Transverse Travel | - | - | 20cm | 20cm（floating） |
Option: Carbon fiber fistula arm board with pad for imaging and injection (Part #505-1118)
