Setting new standards in MINI C-Arm imaging

  1. Exceptional image quality
    Increased gray-scale improves diagnostic accuracy
  2. Better dose utilization
    Superior image quality for a given dose

Optimized form factor

Small, thin design affords maximum maneuverability

Enhanced reliability

Fewer components leads to less probability of failure

Adjustment free imaging

Automatically adjusts to metal, motion, and varying anatomy

Surgeon driven design

Enabling optimal image quality with minimal effort

コンパクト収納

Over-rotation

60° range provides rotational freedom to acquire preferred views without stressing the anatomy

150°ローテーション

Clinical images

  • Flat Detector
    Flat Detector
  • Image Intensifier
    Image Intensifier
  • Flat Detector
    Flat Detector
  • Image Intensifier
    Image Intensifier

使用イメージ

Specifications

FLAT DETECTOR

  • Detector resolution: 2k x 1.5k
  • Field of view: 6″ (15cm) x 5″ (12cm) and 4″ (10cm) x 3″ (8cm)
X-RAY MONOBLOCK DOCUMENTATION SIZE AND DIMENSIONS
kV range: 40 – 78kVp
mA range: 0.04 – 0.160mA
Image capacity: 8000
Video (optional): 90 minutes
DICOM Send & DICOM Print USB 2.0 ports
Weight: 400lbs (181kg)
Height: 44.5″ (113cm)
Width: 29″ (74cm)

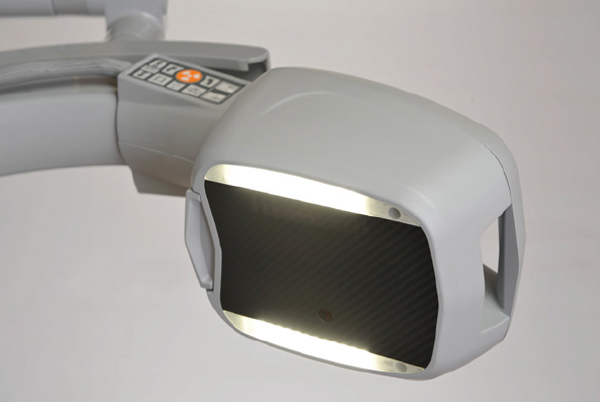

  • サージカルLEDライト
    Surgical LED lights

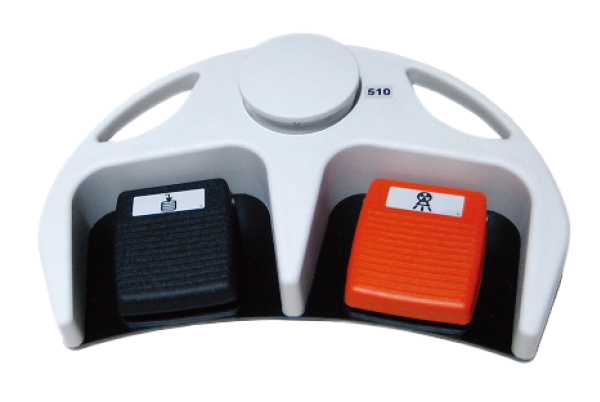

  • ワイヤレス・フットスイッチ
    Infrared footswitch available

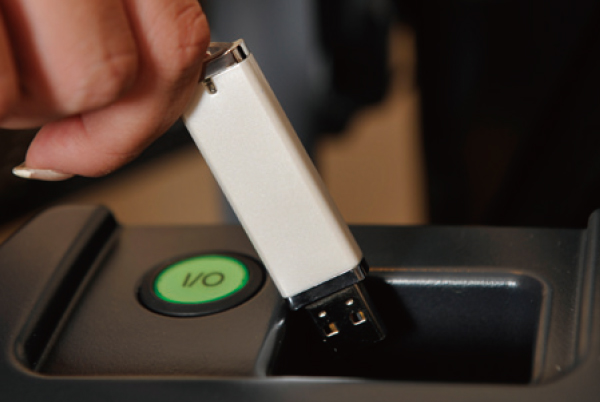

  • USBポート
    USB port

Reduces shadows by providing primary light in the surgical field, illuminating anatomical detail

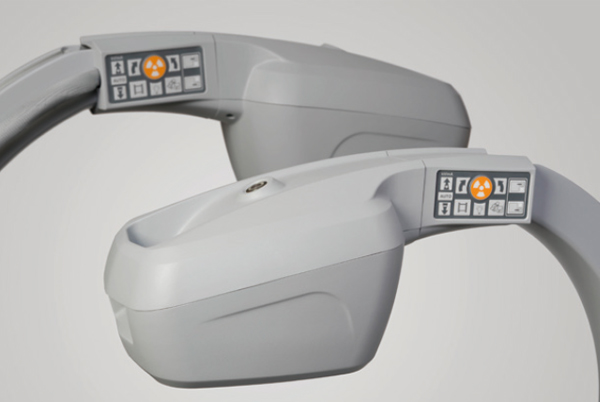

両サイドコントロールパネル

Bilateral controls
Imaging and documentation functions are easily accessible
